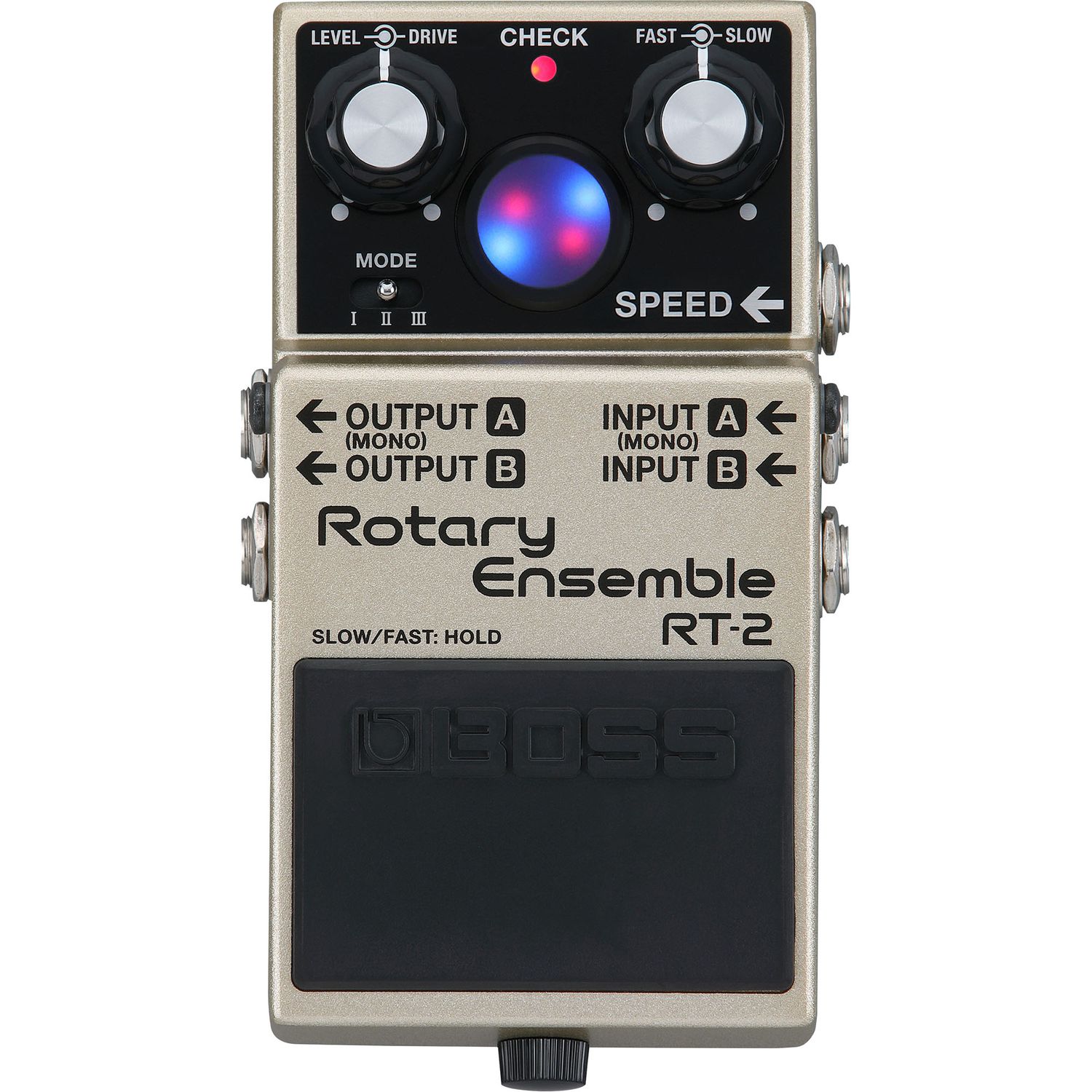

Boss RT-2 Rotary Ensemble

Step into the swirling, speaker-spinning world of rotary effects with the BOSS RT-2 Rotary Ensemble — a premium stereo rotary speaker pedal built to capture the soulful, immersive sound of classic rotating speaker cabinets. With its advanced DSP and intuitive controls, the RT-2 delivers a lush, dimensional sound that’s equally at home recreating vintage gospel tones, prog-rock psychedelia, or ambient textures that drift and spin through space.

Using proprietary Roland/BOSS Adaptive Focus conversion, the RT-2 captures the nuances of your tone with outstanding clarity and a dramatically improved signal-to-noise ratio. Whether you’re aiming for the smoky, organ-style tones of Don Leslie’s legendary invention or chasing the liquid modulation heard on David Gilmour’s iconic leads, the RT-2 is a powerful tool that puts expressive rotary magic at your feet.

It features independent controls for SLOW and FAST speeds, onboard DRIVE for tube-like saturation, and stereo I/O for wide, engulfing modulation. The VIRTUAL ROTOR light gives visual feedback of your rotation speed, and flexible input/output options mean this pedal fits effortlessly into mono or stereo rigs. Pair it with an expression pedal or footswitch for dynamic speed control on stage — or hook it into your studio setup for massive swirling textures on guitar, synths, or even vocals.

If you’re inspired by the rotating speaker textures used by guitar legends like Jimi Hendrix, David Gilmour, or Jeff Beck, the RT-2 Rotary Ensemble brings those lush, moving tones into the modern age with precision and flexibility. It’s not just an effect — it’s an experience.

BOSS RT-2 Rotary Ensemble – Specifications

• Sample Rate: 48 kHz
• AD Conversion: 24-bit + Adaptive Focus (AF) method
• DA Conversion: 32-bit
• Nominal Input Level: -20 dBu (INPUT A/B)
• Maximum Input Level: +7 dBu (INPUT A/B)
• Input Impedance: 1 MΩ (INPUT A/B)
• Nominal Output Level: -20 dBu (OUTPUT A/B)
• Maximum Output Level: +7 dBu (OUTPUT A/B)
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater
• Bypass Type: Buffered bypass

Controls:

• SLOW knob
• FAST knob
• DRIVE knob
• LEVEL knob
• MODE switch
• Pedal switch
• RISE/FALL TIME switch
• DRIVE KNOB switch

Indicators:

• CHECK indicator (tempo and battery check)
• VIRTUAL ROTOR display

Connectors:

• INPUT A (MONO), INPUT B: 1/4-inch phone type
• OUTPUT A (MONO), OUTPUT B: 1/4-inch phone type
• CTL/EXP jack: 1/4-inch TRS phone type
• DC IN jack

Power:

• 9V Alkaline battery (6LR61 or 6LF22)
• AC adaptor (PSA series, sold separately)
• Current draw: 115 mA
• Approx. battery life: 2.5 hours (continuous use with alkaline battery)

Dimensions:

• 73 mm (W) x 129 mm (D) x 59 mm (H)
• 2-7/8” (W) x 5-1/8” (D) x 2-3/8” (H)

Weight:

• 450 g / 1 lb (including battery)

Included Accessories:

• 9V dry battery
• Safety and instruction leaflet

Optional Accessories (sold separately):

• AC Adaptor: PSA series
• Footswitches: FS-5U, FS-6, FS-7
• Expression Pedals: FV-500H, FV-500L, EV-30, Roland EV-5
