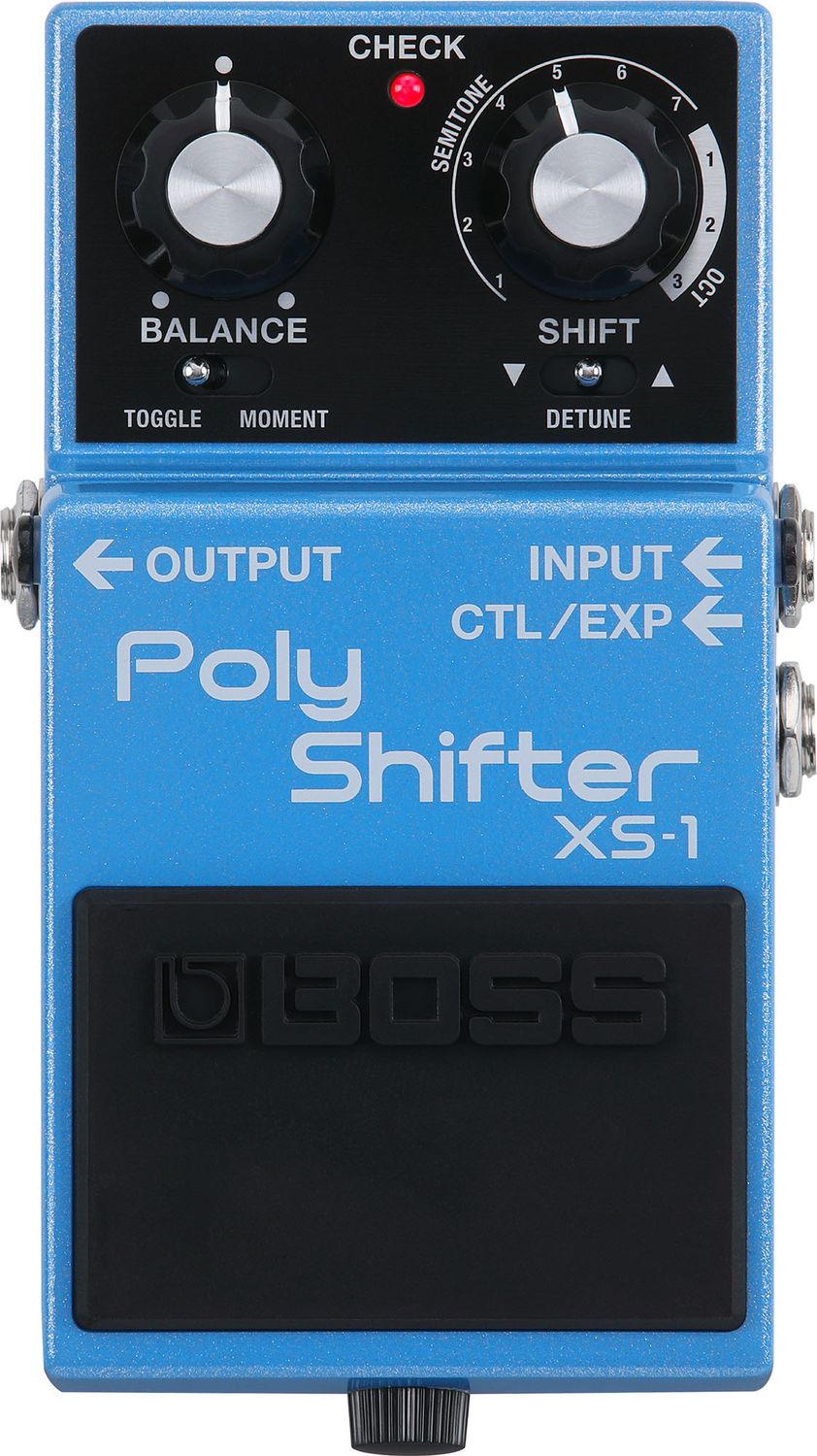

BOSS XS-1 Poly Shifter

The BOSS XS-1 Poly Shifter brings studio-grade pitch shifting into a compact stompbox that’s easy to drop on any pedalboard. Powered by 24-bit AD conversion with BOSS’s proprietary Adaptive Focus method and 32-bit DA conversion, the XS-1 delivers crystal-clear signal with outstanding dynamics and ultra-low noise. A 48 kHz sampling frequency ensures pro-level audio quality, whether you’re shifting chords, single notes, or creating new textures altogether.

Dialing it in is simple. The BALANCE and SHIFT knobs let you blend and control your pitch-shifted tones, while dedicated PEDAL MODE and SHIFT DIRECTION switches give you flexible performance options. A rugged footswitch and CHECK light (which doubles as a battery indicator) keep things reliable on stage.

The XS-1 is built to last, with buffered bypass, a tough metal chassis, and flexible power options. Run it for up to 3 hours on a single 9V battery, or plug in a BOSS PSA adaptor for worry-free gigging. Expand your setup with optional footswitches (FS-5U, FS-6, FS-7) or an expression pedal (EV-30, FV-500, EV-5) to unlock even more control.

Compact, durable, and sonically powerful, the BOSS XS-1 Poly Shifter is the perfect way to explore new harmonic territory.

Specifications

• AD Conversion: 24-bit + Adaptive Focus method (improves S/N ratio)
• DA Conversion: 32-bit
• Sampling Frequency: 48 kHz
• Nominal Input Level: –20 dBu
• Maximum Input Level: +7 dBu
• Input Impedance: 1 MΩ
• Nominal Output Level: –20 dBu
• Maximum Output Level: +7 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater
• Bypass: Buffered bypass

Controls

• BALANCE knob
• SHIFT knob
• PEDAL MODE switch
• SHIFT DIRECTION switch
• Pedal switch

Indicators & Connectors

• CHECK indicator (power/battery)
• INPUT jack: 1/4”
• OUTPUT jack: 1/4”
• CTL/EXP jack: 1/4” TRS
• DC IN jack

Power & Performance

• Power: AC adaptor (PSA series) or 9V alkaline battery (6LR61/6LF22)
• Current Draw: 120 mA
• Battery Life: ~3 hours continuous use (alkaline)
• Dimensions: 73 × 129 × 59 mm (2-7/8” × 5-1/8” × 2-3/8”)
• Weight (incl. battery): 410 g / 15 oz

Included Accessories

• Safety/info leaflet
• 9V alkaline battery

Optional Accessories (sold separately)

• AC adaptor: PSA series
• Footswitch: FS-5U
• Dual Footswitch: FS-6, FS-7
• Expression Pedals: EV-30, FV-500L, FV-500H, Roland EV-5
