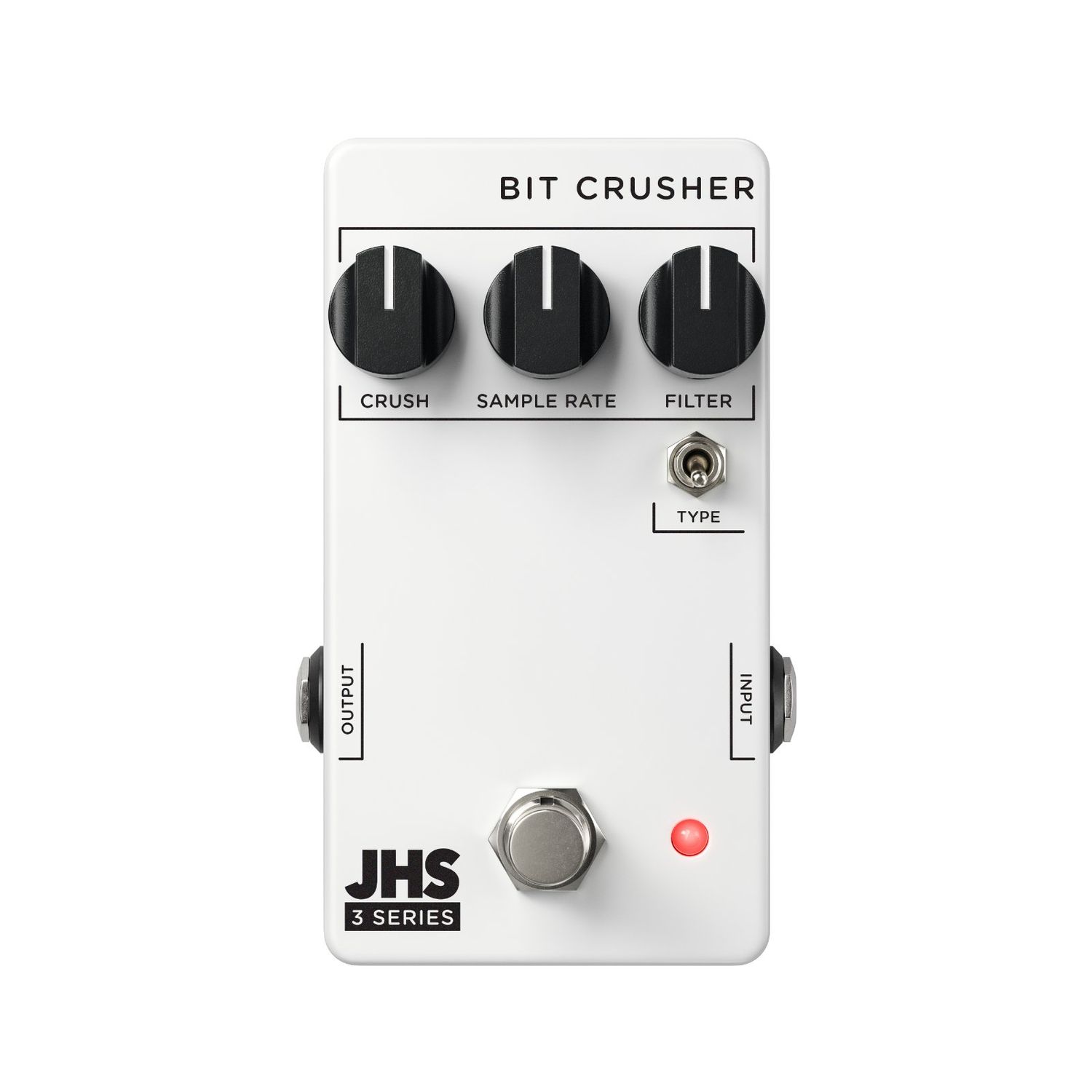

JHS - 3 Series Bitcrusher

There's something deeply satisfying about deliberately destroying a signal — and the JHS 3 Series Bitcrusher lets you do exactly that, with enough control to go from subtle digital grit to full-on sonic annihilation.

Bitcrushers have a long history in electronic and experimental music, and this one distills the concept down to its most useful, playable form. The Crush knob sweeps from a clean-ish 24-bit resolution all the way down to a brutal 1-bit square wave that'll reduce your guitar, synth, or whatever you feed it into a snarling, pixelated wreck. That's not hyperbole — at the low end of that range, your signal stops resembling music and starts sounding like a dying Game Boy, and that's exactly the point. The Sample Rate knob works alongside it, dragging your audio down from a respectable 32.768 kHz all the way to a barely-there 2.5 Hz crawl. Push both knobs toward the extremes together and things get genuinely weird in the best way.

What keeps it practical is the Filter knob and the LP/HP toggle. Rather than leaving you stranded in a sea of harsh digital noise, the filter lets you shape the character of the crushed signal — rolling off the jagged highs in low-pass mode for something warmer and more lo-fi, or leaning into the glassy, brittle upper frequencies with high-pass engaged. It's the difference between an old cassette tape left in a hot car and a fax machine having a breakdown. Both are useful, depending on what you're going for.

This is the kind of pedal that rewards experimentation. Subtle settings add texture and edge to clean tones — a little sample rate reduction can make a clean guitar sound like it was recorded on a four-track in 1994. Crank things up and it becomes a full-on noise weapon. Producers, ambient players, noise rock guitarists, and anyone who's ever wanted to sound like a corrupted audio file will find a lot to love here.

The 3 Series packaging keeps things compact and road-ready, and the straightforward control layout means you're never hunting for the right setting — you just find it.

---

**Specifications:**

- Brand: JHS Pedals

- Model: 3 Series Bitcrusher

- SKU: 3SBC

- Controls: Crush (24-bit to 1-bit), Sample Rate (32.768 kHz to 2.5 Hz), Filter, Type toggle (LP/HP)

- Power: 9V DC, center-negative

- Current Draw: 65mA

- Dimensions: 4.42 x 2.38 x 1.22 in
